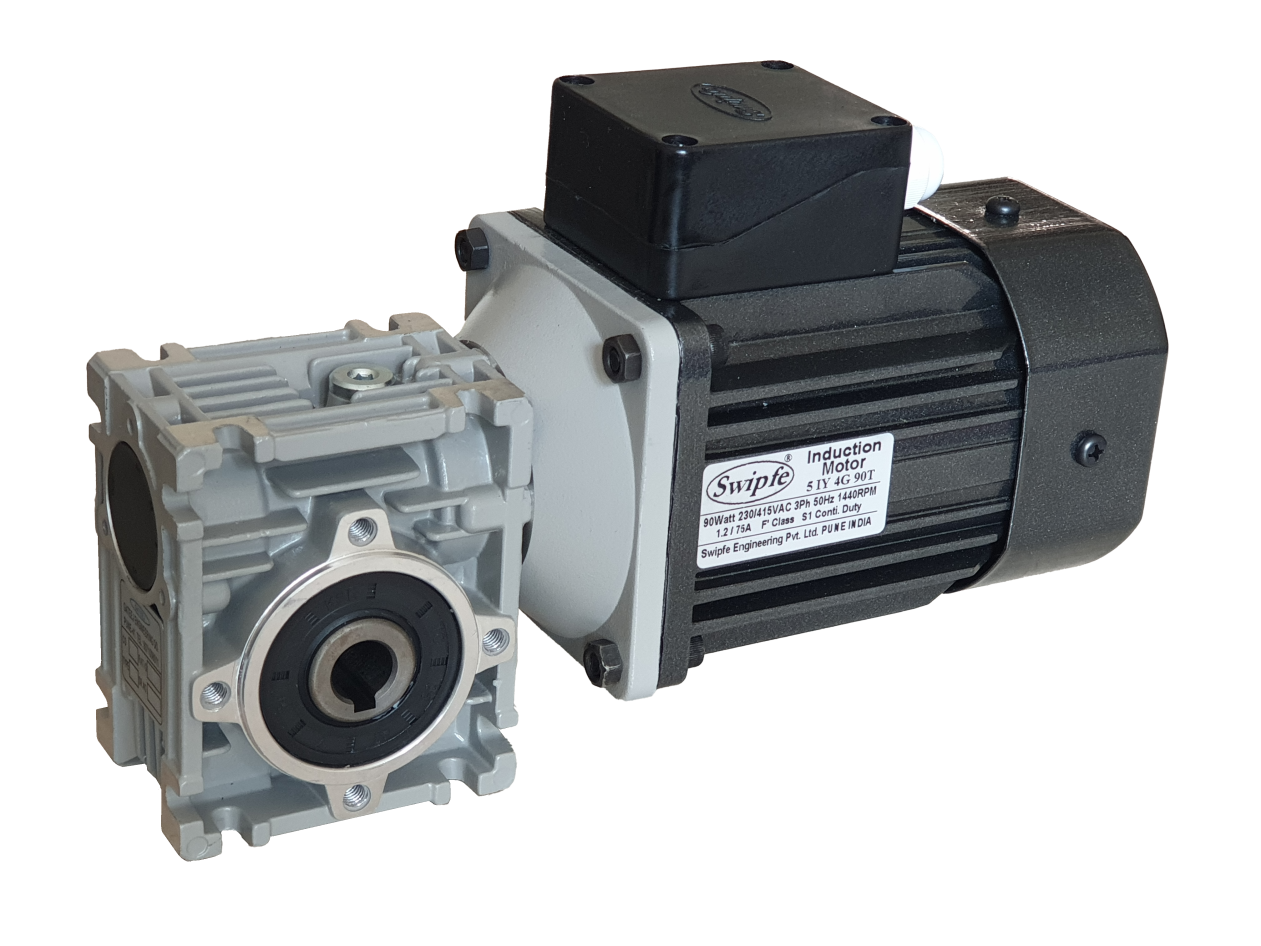

Motor And Worm Gearbox
GB30W
Motor Square Flange
90mm x 90mm
Continuous Duty
Clockwise or Counter Clockwise Rotation
Terminal Box or Lead Wires For Connection
Totally Enclosed Fan Cooled Aluminium Body
Motor Specifications:
| Model | Supply | Frequency Hz |
Stall Torque
Nm |
Rated Torque Nm |
Rated Speed RPM |
Rated Current Amp |
Capacitor μF |
|---|---|---|---|---|---|---|---|
| 5IX4F180 | Single Phase 230V | 50 | 1.45 | 1.22 | 1350 | 1.10 | 8 |
| 5IY4F180 | Three Phase 230V | 50 | 1.50 | 1.34 | 1250 | 0.90 | - |
| 5IY4F180 | Three Phase 415V | 50 | 1.94 | 1.22 | 1350 | 0.48 | - |
| 5IX4F90 | Single Phase 230V | 50 | 0.86 | 0.62 | 1350 | 0.51 | 4 |
| 5IY4F90 | Three Phase 230V | 50 | 0.86 | 0.72 | 1250 | 0.44 | - |
| 5IY4F90 | Three Phase 415V | 50 | 1.10 | 0.61 | 1350 | 0.25 | - |
| 5IX4F60 | Three Phase 230V | 50 | 0.51 | 0.45 | 1350 | 0.42 | 3.15 |
| 5IY4F60 | Three Phase 415V | 50 | 0.56 | 0.45 | 1300 | 0.29 | - |
| 5IY4F60 | Single Phase 230V | 50 | 0.69 | 0.45 | 1350 | 0.18 | - |
Gearmotor Torque Table:
The maximum permissible torque is 24 Nm
The maximum permissible torque is 24 Nm
No Load speed of Motor at 50Hz is approx. 1440RPM
50Hz
Unit : Nm
| RPM | 288 | 192 | 144 | 96 | 72 | 57 | 48 | 36 | 29 | 24 | 18 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gear Ratio | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 | 80 |
| Output Torque | 5.0 | 7.8 | 10.0 | 14.0 | 18.0 | 21.0 | 24.0 | 14.0 | 17.0 | 19.0 | 14.0 |
| Motor Power | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 90 | 90 | 90 | 60 |
The Gear Boxes are sold Seperately.
The speed of geared motor is calculated by dividing motor’s no load speed by the gear ratio.
The actual speed is less than the displayed value, depending upon the load.
Characteristics, specifications and dimensions are subject to change without notice.
Dimensions:
Worm Gearbox
Motor, Gearbox with Terminal Box
Motor, Gearbox with Lead Wires
Hollow Shaft
Max. Weight:
Motor - 2.5 - 3.3 kg
Gear Box - 1.1 kg
Wiring Diagram:
Wiring Diagram for Single Phase Motor
Short Black wires and connect as shown to rotate the motor in clockwise direction. To change the direction, flip CW to CCW.
Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red wires..
Wiring Diagram for Three Phase Motor
To change the direction, interchange any two wires between U, V & W. For 415 Volt 3 Phase supply, wires are connected as shown. Short White, Black, & Blue wires and then insulate it properly.
To change the direction, interchange any two wires between U, V & W. For 230 Volt 3 Phase supply, wires are connected as shown.
Change the direction of motor only after it stops rotating. If the attempt is made during rotation, motor may not change the direction or change the direction after some time.
