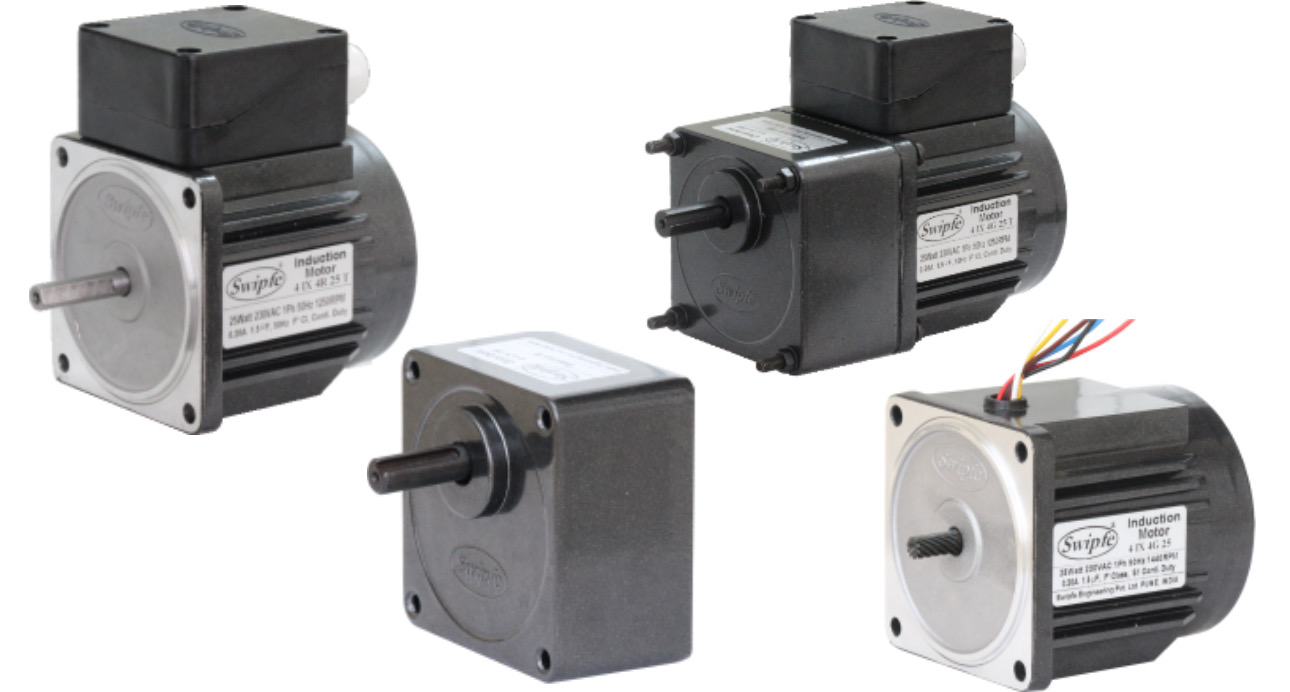

10 Watt Torque Motor
Frame size : 80 mm
Continuous Rating, TE Aluminium Body.
Rotates in Clockwise or Counter Clockwise Direction.
Terminal Box or Open Lead Wires for Connection.
Specifications
Model | Supply Voltage | Frequency Hz |
Current A |
Starting Torque N.m |
Torque at Max power N.m |
Max Input Power W |
Capacitor μF |
---|---|---|---|---|---|---|---|
4 TW 4 10 | Single Phase 110V | 50 | 0.6 | 0.075 | 0.045 | 42 | 8 |
4 TW 4 10 | Single Phase 110V | 60 | 0.6 | 0.05 | 0.03 | 39 | 8 |
4 TX 4 10 | Single Phase 230V | 50 | 0.3 | 0.075 | 0.045 | 42 | 2.5 |
4 TY 4 10 | Three Phase 230V | 50 | 0.3 | 0.075 | 0.045 | 42 | - |
4 TY 4 10 | Three Phase 230V | 60 | 0.3 | 0.05 | 0.03 | 39 | - |
4 TY 4 10 | Three Phase 415V | 50 | 0.15 | 0.075 | 0.045 | 42 | - |
Type Of Shaft, G for Gear Shaft, R for Round Shaft
Gear Box Ratios
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
---|
The Gear Boxes are sold Seperately. A coloured background indicates gear shaft rotation in same direction as motor shaft. A white background indicates gear shaft rotation in opposite direction to the motor shaft. The speed of geared motor is calculated by dividing motor’s synchronous speed by the gear ratio. Torque increases as the speed drops. Characteristics, specifications and dimensions are subject to change without notice.
Dimensions
Motor, Gearbox and Terminal Box
Motor, Round Shaft with Terminal Box
Motor, Gearbox with Lead Wires
Key And Keyway
Weight : Motor 1.4 kg
Gearbox 0.75 kg
Wiring Diagram
Wiring Diagram for Single Phase Motor
Short Black wires and connect as shown to rotate the motor in clockwise direction. To change the direction, flip CW to CCW.
Red wires are for running winding & Black wires are for starting winding. To change the direction, interchange Black wires or Red Wires.
Wiring Diagram for Three Phase Motor
To change the direction, interchange any two wires between U, V and W. For 230 Volt 3 Ph supply, wires are connected as shown. Short White, Black & Blue wires and then insulate properly.
To change the direction, interchange any two wires between U, V and W. For 230 Volt 3 Ph supply, wires are connected as shown.
Change The direction of motor only after it stops rotating. If the attempt is made during rotation, motor may ignore the reversing command or change the direction after some time.
