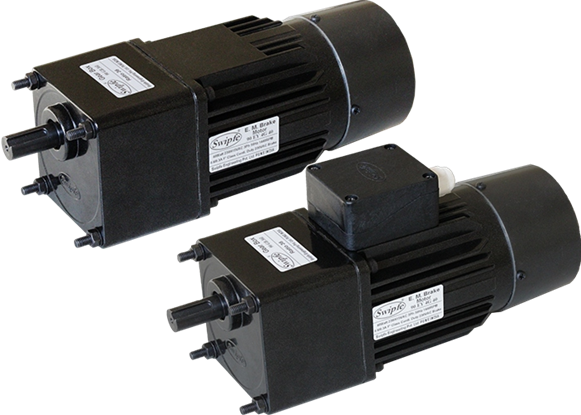

25 watt Electromagnetic Brake Motor
Frame size : 80 mm
Continuous Rating with Frequent Start Stop.
Load Holding & Minimum Overrun.
Electromagnetic Fail Safe Brake (Power of activated)Fitted at the Back.
Rotates in Clockwise or Counter Clockwise Direction Terminal Box or Lead Wires for Connection.
Specifications
Model | Supply Voltage | Frequency Hz |
Current A |
Starting Torque N.m |
Rated Torque N.m |
Rated Speed RPM |
Capacitor μF |
---|---|---|---|---|---|---|---|
4 EW 4 25 | Single Phase 110V | 50 | 0.40 | 0.11 | 0.18 | 1200 | 5.0 |
4 EX 4 25 | Single Phase 230V | 50 | 0.24 | 0.12 | 0.18 | 1200 | 1.5 |
4 EY 4 25 | Three Phase 230V | 50 | 0.24 | 0.21 | 0.17 | 1350 | - |
4 EY 4 25 | Three Phase 415V | 50 | 0.18 | 0.21 | 0.17 | 1350 | - |
Type Of Shaft, G for Gear Shaft, R for Round Shaft
Gear Motor Torque Table
The maximum permissible torque is 8 N.m
50Hz :
Unit : N.m
RPM | 500 | 416 | 300 | 250 | 200 | 166 | 120 | 100 | 83 | 60 | 50 | 41 | 30 | 25 | 20 | 16 | 15 | 12.5 | 10 | 8.3 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gear Ratio | 3 | 3.6 | 5 | 6 | 7.5 | 9 | 12.5 | 15 | 18 | 25 | 30 | 36 | 50 | 60 | 75 | 90 | 100 | 120 | 150 | 180 |
Output Torque | 0.43 | 0.52 | 0.72 | 0.87 | 1.1 | 1.3 | 1.8 | 2.2 | 2.6 | 3.3 | 3.9 | 4.7 | 5.8 | 7.0 | 8.0 | 8.0 | 8.0 | 8.0 | 8.0 | 8.0 |
The Gear Boxes are sold Seperately.
A coloured background indicates gear shaft rotation in same direction as motor shaft.
A white background indicates gear shaft rotation in opposite direction to the motor shaft.
The speed of geared motor is calculated by dividing motor's synchronous speed by gear ratio.
The actual speed is 2 - 20% less than the displayed value, depending upon the load
Characteristics, specifications and dimensions are subject to change without notice.
Dimensions

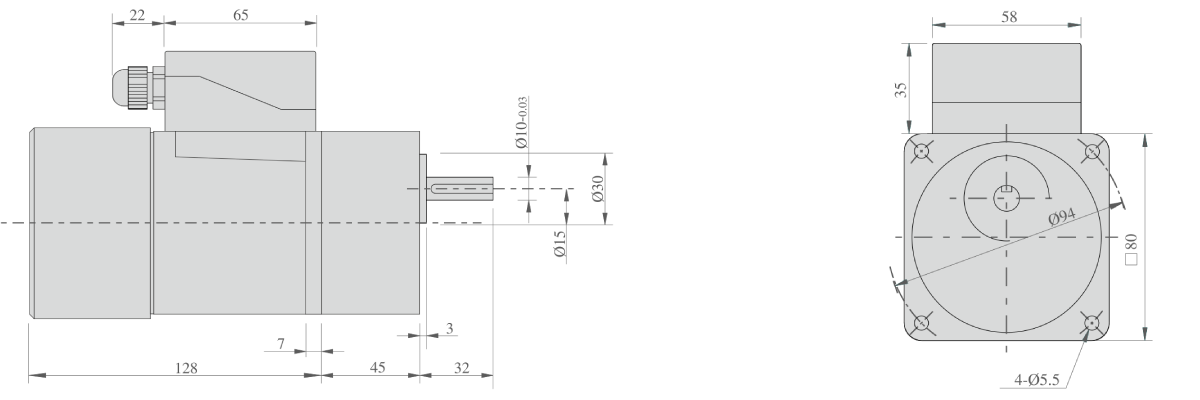

Motor, Gearbox with Terminal Box

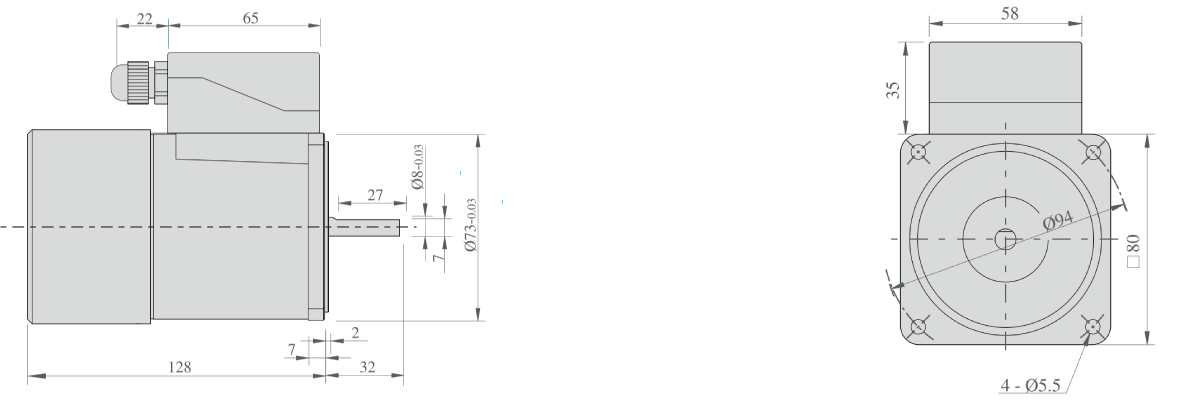

Motor, Round Shaft with Terminal Box

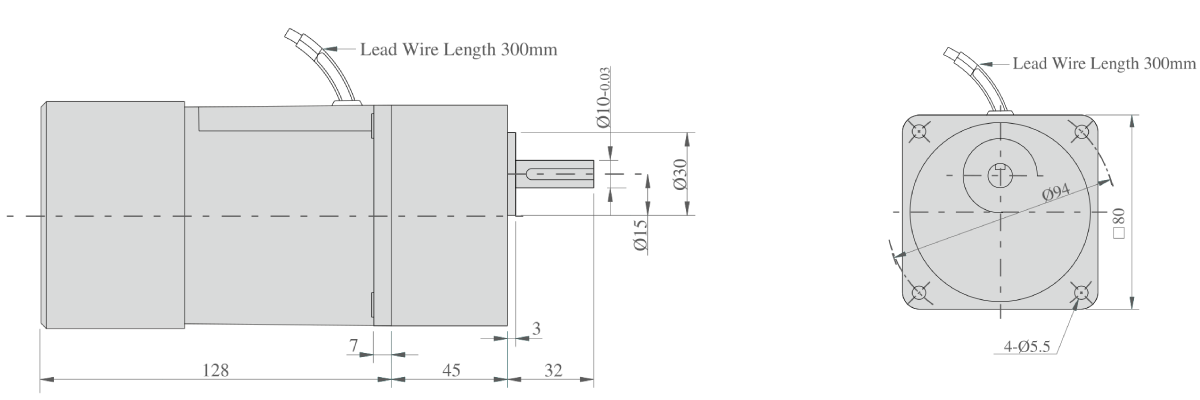

Motor, Gearbox with Lead Wires
Key And Keyway
Wiring Diagram

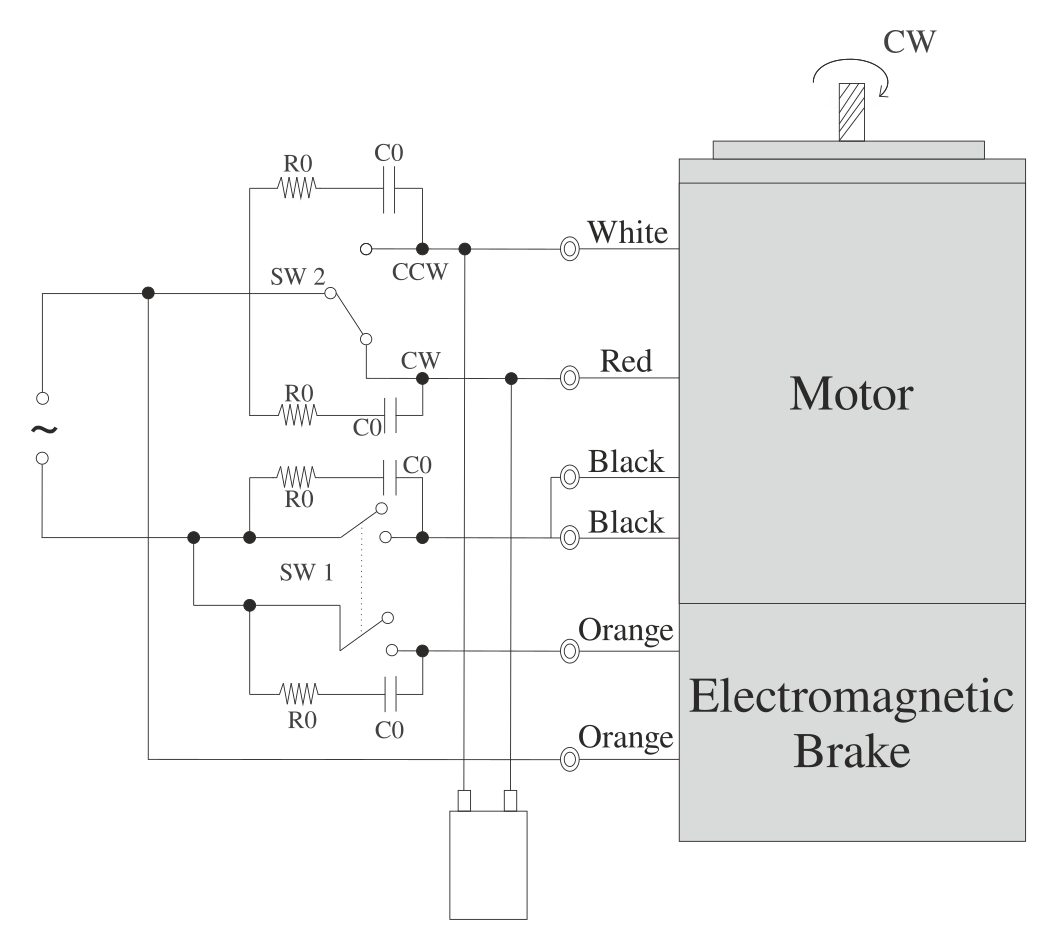

Wiring Diagram for Single Phase Motor
When SW1 is switched ON, electromagnetic Brake is released & motor starts rotating. When SW1 is switched OFF then electromagnetic brake will be applied stopping motor immediately, holding the load. Apply voltage on the orange brake lead wires only, to release the Electromagnetic Brake. To change the direction of rotation, interchange any two wires between U, V & W.

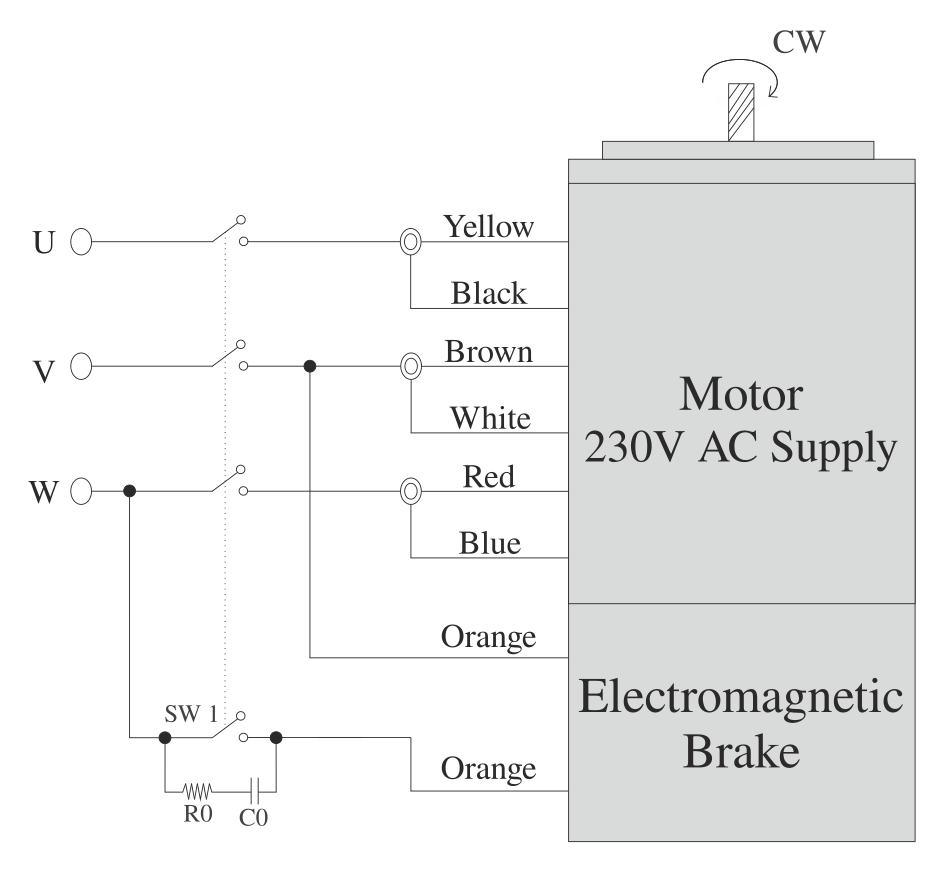

Wiring Diagram for Three Phase Motor
When SW1 is switched ON, electromagnetic Brake is released & motor starts rotating. When SW1 is switched OFF then electromagnetic brake will be applied stopping motor immediately, holding the load. Apply voltage on the orange brake lead wires only, to release the Electromagnetic Brake. To change the direction of rotation, interchange any two wires between U, V & W.
